Creating a Subsystem Configuration

In this tutorial you will use the RSE subsystemConfigurations extension point to show new subsystems within connections, which will then appear when those connections are expanded. Effectively, you will add a new remote-accessing tool to the Remote System Explorer.

A full-blown tutorial to illustrate this extension point is a bit difficult without inventing server-side code and a communication layer for that server-side code to communication with the client-side subsystem. Rather than becoming bogged down in these details, this tutorial will not write server-side code or a communications-layer, but instead will hard-code the remote resources on the client-side so as to focus discussion on the client-side code. The extension point assumes you already have server-side code and a communication layer you now want to exploit within Eclipse.

When you are finished you should have a working subsystem similar to the one found in the org.eclipse.rse.examples.tutorial plugin.

Scenario

This tutorial pretends that you have server-side code which manages user profiles for developers and teams of developers. We assume there is a master list of developers identified for development access to this server, and there is a grouping mechanism that allows developers to be assigned to named teams. A developer may exist on multiple teams. Each developer can have one or more roles which may affect what they are allowed to access.

In this tutorial you will define a subsystem for working with these resources in the remote system identified by the connection. This will first list teams and then developers within teams. Roles will be accessible via an action.

Do not worry about how useful or realistic the example is. The point of the exercise is show the code necessary to fully enable new subsystems. It is up to the subsystem developer to decide what resources to expose and what actions on those resources.

Step By Step: Creating a Subsystem Configuration

If you have not already, first create or prepare a plugin project We will follow the steps listed in the Overview of Steps section in the description of the plugin.

Create a package named samples.subsystems, by right-clicking on the src folder and using the New->Package wizard. In the new package, create an empty interface named IDeveloperSubSystem, by right-clicking on the package and selecting New->Interface.
Also in package samples.subsystems, use New->Class to create a class named DeveloperConnectorService that extends superclass AbstractConnectorService, selecting the option to include Constructors from superclass. Edit the result to add a connected instance variable that is used in the methods, as shown in bold here.
Again in package samples.subsystems, use New->Class to create a class named DeveloperConnectorServiceManager that extends superclass AbstractSystemManager, selecting the option to include Constructors from superclass. Edit the result to add a factory method, and flesh out the methods, as highlighted here.
Create a package named samples.model. Create two classes in it: TeamResource and DeveloperResource, each of which extend AbstractResource.
1. Edit DeveloperResource to add name, id, and deptNbr properties, as shown in bold here. You can use the refactoring support in eclipse to generate the getters and setters for these properties.
2. Edit TeamResource to add name and developers (array) properties, as shown in bold here.
You need to think about filter support. For now, you can keep it simple: users can only create filters that list teams, by specifying a single string that is either a scalar or a generic team name. If scalar, one team will be shown when the filter is expanded. If generic, all teams matching the generic pattern will be listed. Given the simplicity, you will not need to create a filter string class to perform parsing. As a result, you have nothing to do for this step.
Return to package samples.subsystems, and create class DeveloperSubSystem that extends SubSystem. Edit the generated class to add code highlighted here.
Again in package samples.subsystems, create class DeveloperSubSystemConfiguration that extends SubSystemConfiguration. Edit the generated class to add code highlighted here.
In the project's root folder, find and edit file rseSamplesResources.properties and add the line highlighted here.

Update your plugin.xml file to include the following lines:


   <!-- ======================================= -->
   <!-- SubSystem Configuration                 -->
   <!-- ======================================= -->
   <extension point="org.eclipse.rse.core.subsystemConfigurations">
        <configuration
             id="samples.subsystems.factory"
             systemTypeIds="org.eclipse.rse.systemtype.linux;org.eclipse.rse.systemtype.unix;org.eclipse.rse.systemtype.windows"
             name="Teams"
             class="samples.subsystems.DeveloperSubSystemConfiguration"
             category="users"
             vendor="ACME"
        >
        </configuration>
   </extension>

Note: You would normal use the icon and iconlive attributes to specify a unique icon for your subsystem, but to keep it simple here, just use the default icon. Also, the priority attribute has been left out for simplicity.

Now you are far enough along that you can try our what you have, before proceeding. Select Run->Run As->Run-time workbench. Create a new Linux connection in the RSE, and expand it. You'll now see your new subsystem, which you can expand to see its default filter, which in turn you can expand to see your hardcoded list of teams:

You will be prompted for a user ID and password, but since the system class does not really connect, enter anything you like!

Eventually, you will be able to expand a team to see its developers.

Now it is time to work on the appearance and functions of those remote resources. You will do this by creating adapters for the resources:

Select the samples.model package, and:
1. Create a new class named TeamResourceAdapter that extends AbstractSystemViewAdapter and implements ISystemRemoteElementAdapter. Edit the generated class and add the code highlighted here.
2. Create a new class named DeveloperResourceAdapter that extends AbstractSystemViewAdapter and implements ISystemRemoteElementAdapter. Edit the generated class and add the code highlighted here.
3. Next, you need the icons for your remote resources, which you referred to in your adapters. Edit the RSESamplesPlugin file and edit the initializeImageRegistry to add the lines of code highlighted here. Now, you need the icons. Select the RSESamplesPlugin project, right-click and select New->Folder and create a folder named icons. Select the new folder, and use File->Import to import the team.gif and developer.gif files from the org.eclipse.rse.examples.tutorial/icons folder.
Creating the adapters does nothing until you register them with the platform. To do that, you need an adapter factory class and you need to register it with the platform:
1. Select the samples.model package and in it create a class named DeveloperAdapterFactory that extends AbstractSystemRemoteAdapterFactory and implements interface org.eclipse.core.runtime.IAdapterFactory. Edit the generate class as per the highlighted code here.
2. Back in the RSESamplesPlugin class, add the highlighted code here to your startup method.

Once again, run the workbench to see your new subsystem:

It is looking better now! There are icons and labels, and the team resources are expandable. Try the following things with your new subsystem resources:

Right-click on Team 1 and select the rename action. The rename action is enabled because you overwrote canRename in the team resource adapter class. Try renaming it to a name already in use. The rename dialog can catch this error because we returned the list of names in use in the getRemoteParentNamesInUse method in our team resource adapter class. Rename to a new name. The rename in fact happens because we implemented the doRename method.
The default filter All teams exists because we wrote code to create it in our createDefaultFilterPool method of our subsystem configuration. Try creating a new filter: right-click on Teams subsystem and select New->Filter to get the New Filter wizard. Enter *2, press Next, and enter Test filter for the filter name. Press Finish to create the filter. Expand it, and you will see that only teams whose name ends with "2" are shown:

Filter support is free in the RSE, but you do have to write our own code to apply that filter pattern as you see fit. In this case, we did this in our internalResolveFilterString method of our subsystem.

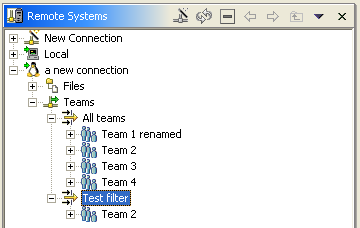

Notice how a resource like team can display multiple times, by different filters that resolve to it. Rename Team 2 shown under the new expanded Test filter, and notice how it is successfully renamed under both filters. This ability to refresh the name in all occurrences of the same resource is made possible by the adapter methods getAbsoluteName, which helps RSE find redundant copies of the same object, and refreshRemoteObject, which the RSE calls, on each redundant copy, on a rename operation.

Note: For your reference here is some information on how to further evolve the functions via your adapter, should you want to:

To not show the rename and delete actions at all, or to enable them, override appropriate methods in the adapter class. For details see the methods showRename, showDelete, doRename and doDelete in the parent AbstractSystemViewAdapter class.
To supply your own validator for syntax checking of new names on the rename dialogs, override getNameValidator.
To add additional actions to the pop-up menus, implement the addActions method in your adapter class.
To support dragging and dropping, override the canDrag and canDrop parent methods in your adapter class.
To add additional properties to the property sheet, implement the internalGetPropertyDescriptors and internalGetPropertyValue methods in your adapter class.
To add property pages to your remote objects (the Properties popup menu item will then appear) use the RSE propertyPages extension point.

Now you will continue with the tutorial by enhancing the running example to supply its own actions for creating and changing filters. You will support two types of filters in our subsystems: team filters and developer filters. You have seen team filter already, but developer filters will be new. They will contain a team name and a developer name-pattern, and when expanded, they will list all the matching developers in the given team. The filter string syntax for developer filters will be "team-name/developer-generic-name". Because you have more than one type of filter, our filter wizards will set the type attribute for the filters, so the change action will know which dialog to present to the user. This will also allow you to have different icons for each filter.

Follow these steps to enable support for our own filter-support:
1. First, create the new GUI pane for your developer filter prompts. Select the samples.subsystems package and in it create a new class named DeveloperFilterStringEditPane that extends the class SystemFilterStringEditPane in package org.eclipse.rse.ui.filters. Edit the new class, adding the code highlighted here.
2. Edit the DeveloperSubSystemConfiguration class, and add the code highlighted here.
3. Next, you need the unique icons for your own filters, which you referred to in your subsystem factory. Edit the RSESamplesPlugin file and edit the initializeImageRegistry to add the lines of code highlighted here. Now you need these icons. Select the folder named icons and use File->Import to import the teamFilter.gif and developerFilter.gif files from the org.eclipse.rse.examples.tutorial\icons folder.
4. Now you need to edit your subsystem so it will parse the two types of filters you now have. Edit DeveloperSubSystem and edit it as highlighted here.
5. In the project's root folder, find and edit file rseSamplesResources.properties and add the line highlighted here.

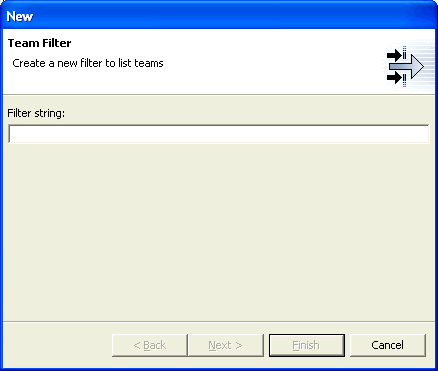

6. Now you can run again. Right click on the Teams subsystem, to see the new actions for creating filters:

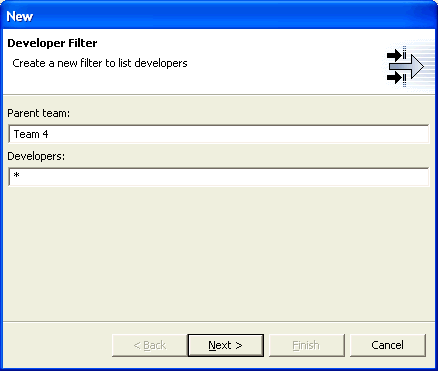

  Create a team filter and a developer filter, and notice the new icons:

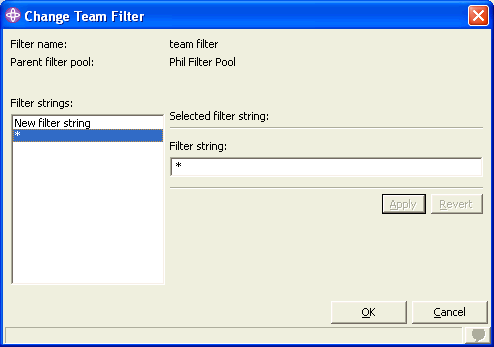

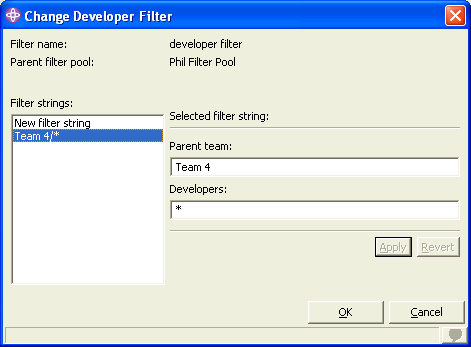

  Now right-click on a team filter and select Change, and then do the same for a developer filter:
